起源の場所: | 中国 |
ブランド名: | DYLINK |
モデル番号: | SW1801D |
最小注文数量: | 1セット |
---|---|
パッケージの詳細: | 木箱のパッキング |
受渡し時間: | 契約に署名した後15日 |
支払条件: | T/T |
供給の能力: | 1000sets |
指定: | SW1801D | コンピュータ関係: | 8 |
---|---|---|---|
ホストのコネクター: | 8x DVIの女性;8x USBのタイプBの女性 | デジタル最高の決断: | 1920年のx 1200@60Hz |
作動のTemperatureRange: | -40 | +55°C | 電源: | DC12V/1A |
次元(D) W X H X: | 438mm x 153mm x 44.5mm | ||
ハイライト: | 女性DVI KVMスイッチ,8左舷DVI KVMスイッチ,DVIのラック マウントKVMスイッチ |

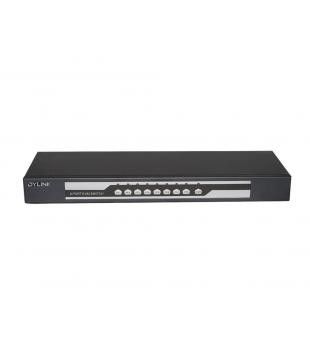

Description: The DYLINK® SW1801D 8 Port DVI KVM Switch allows quick switch between 8 computers from a single USB keyboard and mouse. The SW1801D setup is easy,simply plug the cables into their appropriate ports . There is no software to configure, no installations, and no incompatibility issues. In addition, the SW1801D allowing it to work on multiple OS platforms including:Windows, Linux, and Mac.
Features
■ Share keyboard, mouse, and DVI display between eight DVI-equipped computers
■ Full plug-and-play support with USB keyboards and mouses.
■ Supports a maximum resolution of 1920x1200@60Hz
■ Hotkey and push-button switching
■ OS independent - No driver or software required
■ Supports DDC2B for monitor detection
■ Multiplatform support :Windows, Linux and Mac
■ HP,DELL,IBM mouse and keyboard compatable
Package Includes
• 1 x DVI KVM Switcher
• 1 x Power Adapter
• 1 x User’s Manual
Specifications
Specifications | SW1801D |
Computer Connections | 8 |

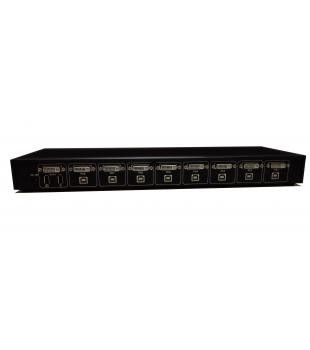

Host Connectors | 8x DVI Female;8x USB Type B female; |
Console Interfaces |
1x DVI Female; 2x USB Type A female; |
DVI Specification | V1.0 |
Maximum Digital Resolutions | 1920 x 1200@60Hz |
LED Indicators | 8 |
Port Selection | Push Button and Hotkeys |
Power Supply | DC12V/1A |
Operating TemperatureRange | -40 ~ +55°C |
Dimensions(W x H x D) | 438mm X 153mm X 44.5mm |
This product is also named as DVI Switch,or DVI KVM Switch,or DVI USB KVM Switch,and so on.
