| ブランド名: | ABB |
| モデル番号: | M2QA QABP QAEJ; MQAEJ M2QA |

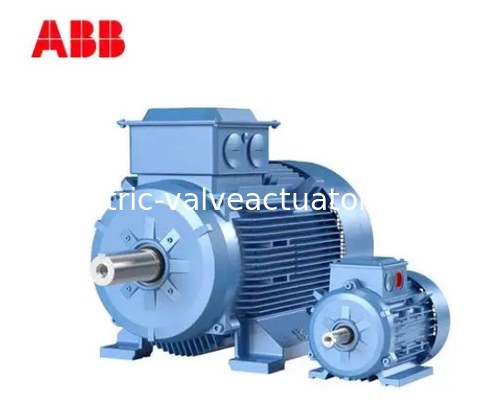

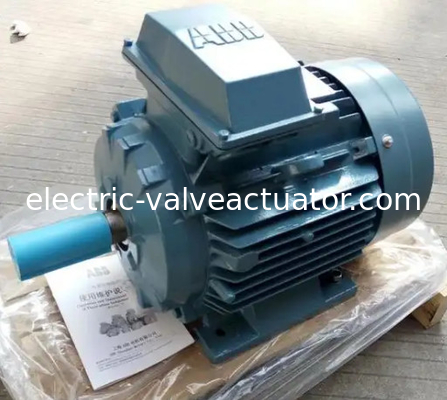

ABBモーター最先端の技術を用いて 信頼性,最高品質の動作,耐久性を保証する性能向上のための特定のアプリケーションに加えて,各モーターは,重用使用のための最も厳しい環境に耐えることができます.
M - 機械ベース長さ 2 - ポール数 A - 鉄コアの長さ
使用条件
①高さ1000mを超えない
②周りの気温は季節によって変化しますが,40°Cを超えません.
③電圧,周波数,動作モード
動作電圧: 220-240V, 380-420V, 440-480V, 660-690V
④定番周波数 50/60Hz
⑤作業モード:連続 (S1)
⑥隔熱レベル:F
4ローヤリングモデル (NSKローヤリング) (SKFローヤリングはオプション)
 |
M2QA 180L8A-XXX * 3GQA 184501-XXX * 415V50Hz 11kW 730r/min
M2QA 200L8A-XXX * 3GQA 204501-XXX * 415V50Hz 15kW 730r/min
M2QA 225S8A-XXX * 3GQA 224101-XXX * 415V50Hz 18.5kW 740r/min
M2QA 225M8A-XXX * 3GQA 224301-XXX * 415V50Hz 22kW 740r/min
M2QA 250M8A-XXX * 3GQA 254301-XXX * 415V50Hz 30kW 735r/min
M2QA 280S8A-XXX * 3GQA 284101-XXX * 415V50Hz 37kW 745r/min
M2QA 280M8A-XXX * 3GQA 284301-XXX * 415V50Hz 45kW 745r/min
M2QA 315S8A-XXX * 3GQA 314101-XXX * 415V50Hz 55kW 740r/min
M2QA 315M8A-XXX * 3GQA 314301-XXX * 415V50Hz 75kW 740r/min
M2QA 315L8A-XXX * 3GQA 314501-XXX * 415V50Hz 90kW 740r/min
M2QA 315L8B-XXX * 3GQA 314502-XXX * 415V50Hz 110kW 740r/min
M2QA 355M8A-XXX * 3GQA 354301-XXX * 415V50Hz 132kW 740r/min
M2QA 355M8B-XXX * 3GQA 354302-XXX * 415V50Hz 160kW 740r/min
M2QA 355L8A-XXX * 3GQA 354501-XXX * 415V50Hz 200kW 740r/min
M2QA 71M2A-XXX * 3GQA 071301-XXX * 460V60Hz 0.43kW 3350r/min
M2QA 71M2B-XXX * 3GQA 071302-XXX * 460V60Hz 0.63kW 3350r/min
M2QA 80M2A-XXX * 3GQA 081301-XXX * 460V60Hz 0.86kW 3420r/min
M2QA 80M2B-XXX * 3GQA 081302-XXX * 460V60Hz 1.27kW 3430r/min
M2QA 90S2A-XXX * 3GQA 091101-XXX * 460V60Hz 1.73kW 3420r/min
M2QA 90L2A-XXX * 3GQA 091501-XXX * 460V60Hz 2.53kW 3440r/min
M2QA 100L2A-XXX * 3GQA 101501-XXX * 460V60Hz 3.45kW 3450r/min
M2QA 112M2A-XXX * 3GQA 111301-XXX * 460V60Hz 4.6kW 3475r/min
M2QA 132S2A-XXX * 3GQA 131101-XXX * 460V60Hz 6.33kW 3500r/min
M2QA 132S2B-XXX * 3GQA 131102-XXX * 460V60Hz 8.6kW 3510r/min
M2QA 160M2A-XXX * 3GQA 161301-XXX * 460V60Hz 12.7kW 3515r/min
M2QA 160M2B-XXX * 3GQA 161302-XXX * 460V60Hz 17.3kW 3515r/min
M2QA 160L2A-XXX * 3GQA 161501-XXX * 460V60Hz 21.3kW 3520r/min
M2QA 180M2A-XXX * 3GQA 181301-XXX * 460V60Hz 25.3kW 3540r/min
M2QA 200L2A-XXX * 3GQA 201501-XXX * 460V60Hz 34.5kW 3550r/min
M2QA 200L2B-XXX * 3GQA 201502-XXX * 460V60Hz 42.6kW 3550r/min
M2QA 71M2A-XXX * 3GQA 071301-XXX * 460V60Hz 51.8kW 3570r/min
M2QA 250M2A-XXX * 3GQA 251301-XXX * 460V60Hz 63kW 3560r/min
M2QA 280S2A-XXX * 3GQA 281101-XXX * 460V60Hz 86kW 3570r/min
M2QA 280M2A-XXX * 3GQA 281301-XXX * 460V60Hz 104kW 3570r/min
M2QA 315S2A-XXX * 3GQA 311101-XXX * 460V60Hz 127kW 3575r/min
M2QA 315M2A-XXX * 3GQA 311301-XXX * 460V60Hz 152kW 3575r/min
M2QA 315L2A-XXX * 3GQA 311501-XXX * 460V60Hz 184kW 3575r/min
M2QA 315L2B-XXX * 3GQA 311502-XXX * 460V60Hz 230kW 3575r/min
M2QA 355M2A-XXX * 3GQA 351301-XXX * 460V60Hz 287.5kW 3580r/min
M2QA 355L2A-XXX * 3GQA 351501-XXX * 460V60Hz 362.5kW 3580r/min
M2QA 71M4A-XXX * 3GQA 072301-XXX * 460V60Hz 0.29kW 1665r/min
M2QA 71M4B-XXX * 3GQA 072302-XXX * 460V60Hz 0.43kW 1670r/min
M2QA 80M4A-XXX * 3GQA 082301-XXX * 460V60Hz 0.63kW 1695r/min
M2QA 80M4B-XXX * 3GQA 082302-XXX * 460V60Hz 0.86kW 1690r/min
M2QA 90S4A-XXX * 3GQA 092101-XXX * 460V60Hz 1.27kW 1695r/min
M2QA 90L4A-XXX * 3GQA 092501-XXX * 460V60Hz 1.73kW 1700r/min
M2QA 100L4A-XXX * 3GQA 102501-XXX * 460V60Hz 2.53kW 1730r/min
M2QA 100L4B-XXX * 3GQA 102502-XXX * 460V60Hz 3.45kW 1725r/min
M2QA 112M4A-XXX * 3GQA 112301-XXX * 460V60Hz 4.6kW 1735r/min
M2QA 132S4A-XXX * 3GQA 132101-XXX * 460V60Hz 6.33kW 1735r/min
M2QA 132M4A-XXX * 3GQA 132301-XXX * 460V60Hz 8.6kW 1735r/min
M2QA 160M4A-XXX * 3GQA 162301-XXX * 460V60Hz 12.7kW 1755r/min
M2QA 160L4A-XXX * 3GQA 162501-XXX * 460V60Hz 17.3kW 1750r/min
M2QA 180M4A-XXX * 3GQA 182301-XXX * 460V60Hz 21.3kW 1770r/min
M2QA 180L4A-XXX * 3GQA 182501-XXX * 460V60Hz 25.3kW 1770r/min
M2QA 200L4A-XXX * 3GQA 202501-XXX * 460V60Hz 34.5kW 1775r/min
M2QA 225S4A-XXX * 3GQA 222101-XXX * 460V60Hz 42.6kW 1780r/min
M2QA 225M4A-XXX * 3GQA 222301-XXX * 460V60Hz 51.8kW 1780r/min
M2QA 250M4A-XXX * 3GQA 252301-XXX * 460V60Hz 63kW 1775r/min
M2QA 280S4A-XXX * 3GQA 282101-XXX * 460V60Hz 86kW 1780r/min
M2QA 280M4A-XXX * 3GQA 282301-XXX * 460V60Hz 104kW 1780r/min
M2QA 315S4A-XXX * 3GQA 312101-XXX * 460V60Hz 127kW 1780r/min
M2QA 315M4A-XXX * 3GQA 312301-XXX * 460V60Hz 152kW 1780r/min
M2QA 315L4A-XXX * 3GQA 312501-XXX * 460V60Hz 184kW 1780r/min
M2QA 315L4B-XXX * 3GQA 312502-XXX * 460V60Hz 230kW 1780r/min
M2QA 355M4A-XXX * 3GQA 352301-XXX * 460V60Hz 287.5kW 1785r/min
M2QA 355L4A-XXX * 3GQA 352501-XXX * 460V60Hz 362.5kW 1790r/min
M2QA 71M6A-XXX * 3GQA 073301-XXX * 460V60Hz 0.21kW 1060r/min
M2QA 71M6B-XXX * 3GQA 073302-XXX * 460V60Hz 0.29kW 1060r/min
M2QA 80M6A-XXX * 3GQA 083301-XXX * 460V60Hz 0.43kW 1105r/min
M2QA 80M6B-XXX * 3GQA 083302-XXX * 460V60Hz 0.63kW 1115r/min
M2QA 90S6A-XXX * 3GQA 093101-XXX * 460V60Hz 0.86kW 1115r/min
M2QA 90L6A-XXX * 3GQA 093501-XXX * 460V60Hz 1.27kW 1110r/min
M2QA 100L6A-XXX * 3GQA 103501-XXX * 460V60Hz 1.73kW 1135r/min
M2QA 112M6A-XXX * 3GQA 113301-XXX * 460V60Hz 2.53kW 1140r/min
M2QA 132S6A-XXX * 3GQA 133101-XXX * 460V60Hz 3.45kW 1145r/min
M2QA 132M6A-XXX * 3GQA 133301-XXX * 460V60Hz 4.6kW 1150r/min
M2QA 132M6B-XXX * 3GQA 133302-XXX * 460V60Hz 6.33kW 1150r/min
M2QA 160M6A-XXX * 3GQA 163301-XXX * 460V60Hz 8.6kW 1165r/min
M2QA 160L6A-XXX * 3GQA 163501-XXX * 460V60Hz 12.7kW 1165r/min
M2QA 180L6A-XXX * 3GQA 183501-XXX * 460V60Hz 17.3kW 1175r/min
M2QA 200L6A-XXX * 3GQA 203501-XXX * 460V60Hz 21.3kW 1175r/min
M2QA 200L6B-XXX * 3GQA 203502-XXX * 460V60Hz 25.3kW 1175r/min
M2QA 225M6A-XXX * 3GQA 223301-XXX * 460V60Hz 34.5kW 1185r/min
M2QA 250M6A-XXX * 3GQA 253301-XXX * 460V60Hz 42.6kW 1180r/min
M2QA 280S6A-XXX * 3GQA 283101-XXX * 460V60Hz 51.8kW 1180r/min
M2QA 280M6A-XXX * 3GQA 283301-XXX * 460V60Hz 63kW 1180r/min
M2QA 315S6A-XXX * 3GQA 313101-XXX * 460V60Hz 86kW 1185r/min
M2QA 315M6A-XXX * 3GQA 313301-XXX * 460V60Hz 104kW 1185r/min
M2QA 315L6A-XXX * 3GQA 313501-XXX * 460V60Hz 127kW 1185r/min
M2QA 315L6B-XXX * 3GQA 313502-XXX * 460V60Hz 152kW 1185r/min
M2QA 450M6A-XXX * 3GQA 453301-XXX * 460V60Hz 184kW 1190r/min
M2QA 450M6B-XXX * 3GQA 453302-XXX * 460V60Hz 230kW 1190r/min
M2QA 450L6A-XXX * 3GQA 453501-XXX * 460V60Hz 287.5kW 1190r/min
M2QA 80M8A-XXX * 3GQA 084301-XXX * 460V60Hz 0.21kW 825r/min
M2QA 80M8B-XXX * 3GQA 084302-XXX * 460V60Hz 0.29kW 825r/min
M2QA 90S8A-XXX * 3GQA 094101-XXX * 460V60Hz 0.43kW 835r/min
M2QA 90L8A-XXX * 3GQA 094501-XXX * 460V60Hz 0.63kW 835r/min
M2QA 100L8A-XXX * 3GQA 104501-XXX * 460V60Hz 0.86kW 840r/min
M2QA 100L8B-XXX * 3GQA 104502-XXX * 460V60Hz 1.27kW 830r/min
M2QA 112M8A-XXX * 3GQA 114301-XXX * 460V60Hz 1.73kW 845r/min
M2QA 132S8A-XXX * 3GQA 134101-XXX * 460V60Hz 2.53kW 860r/min
M2QA 132M8A-XXX * 3GQA 134301-XXX * 460V60Hz 3.45kW 855r/min
M2QA 160M8A-XXX * 3GQA 164301-XXX * 460V60Hz 4.6kW 865r/min
M2QA 160M8B-XXX * 3GQA 164302-XXX * 460V60Hz 6.33kW 865r/min
M2QA 160L8A-XXX * 3GQA 164501-XXX * 460V60Hz 8.6kW 865r/min
M2QA 180L8A-XXX * 3GQA 184501-XXX * 460V60Hz 12.7kW 880r/min
M2QA 200L8A-XXX * 3GQA 204501-XXX * 460V60Hz 17.3kW 880r/min
M2QA 225S8A-XXX * 3GQA 224101-XXX * 460V60Hz 21.3kW 885r/min
M2QA 225M8A-XXX * 3GQA 224301-XXX * 460V60Hz 25.3kW 885r/min
M2QA 250M8A-XXX * 3GQA 254301-XXX * 460V60Hz 34.5kW 880r/min
M2QA 280S8A-XXX * 3GQA 284101-XXX * 460V60Hz 42.6kW 885r/min
M2QA 280M8A-XXX * 3GQA 284301-XXX * 460V60Hz 51.8kW 885r/min
M2QA 315S8A-XXX * 3GQA 314101-XXX * 460V60Hz 63kW 890r/min
M2QA 315M8A-XXX * 3GQA 314301-XXX * 460V60Hz 86kW 890r/min
M2QA 315L8A-XXX * 3GQA 314501-XXX * 460V60Hz 104kW 890r/min
M2QA 315L8B-XXX * 3GQA 314502-XXX * 460V60Hz 127kW 890r/min
M2QA 355M8A-XXX * 3GQA 354301-XXX * 460V60Hz 152kW 890r/min
M2QA 355M8B-XXX * 3GQA 354302-XXX * 460V60Hz 184kW 890r/min
M2QA 355L8A-XXX * 3GQA 354501-XXX * 460V60Hz 230kW 890r/min
