| ブランド名: | Omron |
| モデル番号: | E6A2-C |
| MOQ: | 1 |
| 価格: | Negotiations |

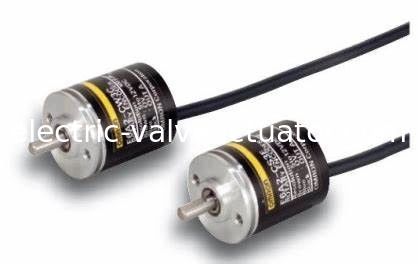

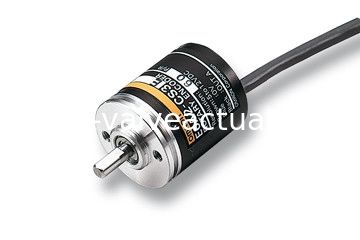

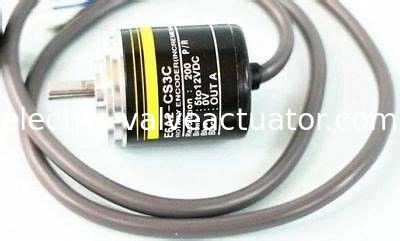

Omron sservo motor encoders incremental E6A2-C 25mm Rotary Encoder with 4mm Shaft Diameter
Specifications:
--Small sized dia 25mm housing
--4mm Shaft Diameter
| Cable exit | Straight |
| Connection | Pre-wired |
| Function | Incremental |
| IP rating | IP50 |
| Max. rotation speed | 5000 |
| Shaft diameter | 4 |
| Model | E6A2-CS3C 100P/R 0.5M | E6A2-CS3C 100P/R 2M | E6A2-CS3C 10P/R 0.5M |
| Cable exit | Straight | ||
| Connection | Pre-wired | ||
| Function | Incremental | ||
| IP rating | IP50 | ||
| Max. rotation speed | 5000 | ||
| Shaft diameter | 4 | ||
| Size (diameter) | 25 | 25 | 25 |
| Resolution (pulse/rotation) | 100 | 100 | 10 |
| Cable Length | 0.5 m | 2 m | 0.5 m |
| Output form | NPN open collector | NPN open collector | NPN open collector |
| Power supply voltage | 5-12 VDC | 5-12 VDC | 5-12 VDC |
The E6A family of rotary encoders features a small sized dia 25mm housing.
Similar Models:
| E6A2-CS3C 100P/R 0.5M | E6A2-CS5C 10P/R 2M | E6A2-CWZ5C 500P/R 0.5M |
| E6A2-CS3C 200P/R 2M | E6A2-CS5C 500P/R 0.5M | E6A2-CS3C 10P/R 0.5M |
| E6A2-CS3E 300P/R 0.5M | E6A2-CW3C 100P/R 2M | E6A2-CS3C 360P/R 2M |
| E6A2-CS3E 360P/R 2M | E6A2-CW3C 200P/R 0.5M | E6A2-CW3C 360P/R 2M |
| E6A2-CS5C 100P/R 2M | E6A2-CW3E 100P/R 0.5M | E6A2-CWZ3C 200P/R 0.5M |
