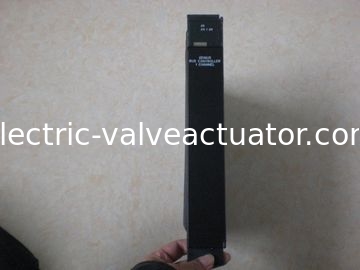

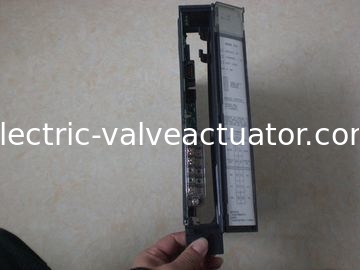

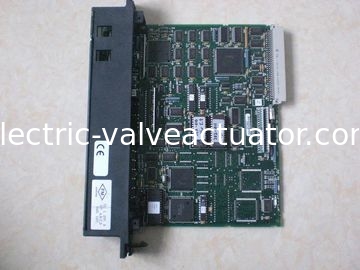

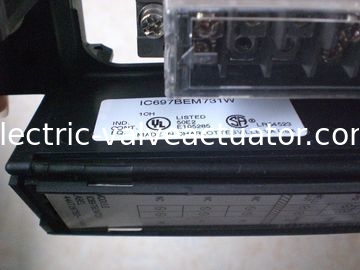

IC697BEM731 Industrial Programmable Controller , Genius Bus Controller 125V 100W

ブランド名:	GE
モデル番号:	IC693MDL240(G)
MOQ:	1
価格:	交渉可能
支払条件:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
供給能力:	In Stock

詳細情報

製品説明

詳細情報

Place of Origin:

USA

証明:

Packaging Details:

New Original Box

Supply Ability:

In Stock

製品説明

Detailed Product Description

Brand:	GE	Model:	IC693MDL240(G)
Place Of Origin:	USA	Product Name:	Ethernet Interface Module
Weight:	0.70 Lbs	UNSPSC Code:	55121719
Highlight:	industrial programmable controller , ethernet plc controllers

PLC Programmable Logic Controller GE Fanuc IC693MDL240 Input Module 16pt. Relay IC693MDL240G

The 120 volt AC Input module for the Series 90-30 Programmable Logic Controller provides 16 input points with one common power input terminal. The input circuits are reactive (resistor/capacitor) inputs.

Current into an input point results in a logic 1 in the input status table (%I). Input characteristics are compatible with a wide range of user-supplied input devices, such as pushbuttons, limit switches, and electronic proximity switches. Power to operate the field devices must be supplied by the user. This module requires an AC power source, it cannot be used with a DC power source.

LED indicators which provide the ON/OFF status of each point are located at the top of the module. This LED block has two horizontal rows with eight green LEDs in each row; the top row labeled A1 through 8 (points 1 through 8) and the bottom row labeled B1 through 8 (points 9 through 16).

An insert goes between the inside and outside surface of the hinged door. The surface towards the inside of the module (when the hinged door is closed) has circuit wiring information, and circuit identification information can be recorded on the outside surface. The outside left edge of the insert is color-coded red to indicate a high-voltage module. This module can be installed in any I/O slot of a 5 or 10-slot baseplate in a Series 90-30 PLC system.

SPECIFITIONS

Rated Voltage	120 volts AC
Input Voltage Range	0 to 132 volts AC, 50/60 Hz
Inputs per Module	16 (one group with a single common)
Isolation	Isolation 1500 volts RMS between field side and logic side
Input Current	12 mA (typical) at rated voltage
Input Characteristics	On-state Voltage 74 to 132 volts AC
On-state Voltage	74 to 132 volts AC
Off-state Voltage	0 to 20 volts AC
On-state Current	6 mA minimum
Off-state Current	2.2 mA maximum
On response Time	30 ms maximum
Off response Time	45 ms maximum
Consumption	90 mA (all inputs on) from 5 volt bus on backplane

Revision Numbers

IC693MDL240A, IC693MDL240B, IC693MDL240C, IC693MDL240D, IC693MDL240E, IC693MDL240F, IC693MDL240G, IC693MDL240H, IC693MDL240I, IC693MDL240J, IC693MDL240K, IC693MDL240L, IC693MDL240M, IC693MDL240N, IC693MDL240O, IC693MDL240P, IC693MDL240Q, IC693MDL240R, IC693MDL240S, IC693MDL240T, IC693MDL240U, IC693MDL240V, IC693MDL240W, IC693MDL240X, IC693MDL240Y, IC693MDL240Z,
