GT1675-VNBD Human Machine Interfaces Touch Screen Mitsubishi 100 to 240 V ac

Name: GT1675-VNBD Human Machine Interfaces Touch Screen Mitsubishi 100 to 240 V ac
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: GT1675-VNBD
Price: 285.00 USD
Availability: InStock

ブランド名:	Mitsubishi
モデル番号:	GT1675-VNBD
MOQ:	1
価格:	交渉可能
支払条件:	L/C,D/A,D/P,T/T,ウェスタンユニオン,マネーグラム
供給能力:	ストック

詳細情報

製品説明

詳細情報

起源の場所:

日本

証明:

パッケージの詳細:

新しいオリジナルボックス

供給の能力:

ストック

ハイライト:

Touch Screen Mitsubishi

Mitsubishi Touch Screen

GT1675 VNBD Touch Screen

製品説明

Detailed Product Description

Brand:	Mitsubishi	Model Item:	GT1675-VNBD
Plan Of Original:	Japan	Screen Size:	12.1 Type
Resolution:	SVGA: 800 X 600 [dot]	Display Size:	246 (W) X 184.5 (H) [mm]
Operating Ambient Temperature:	0 To 55 ° C	Storage Ambient Temperature:	-20 ° C To 60 ° C
Highlight:	hmi display touch screen , industrial hmi panels

GT1675-VNBD Human Machine Interfaces Touch Screen Mitsubishi 100 to 240 V ac

Product Details

10.4 INCH 4K COLOR TOUCHSCREEN VGA TFT DC (GT1675VNBD)
Manufacturer: Mitsubishi
Series: GOT1000

SPECIFICATION

EUA Stock No30337	Brand/ManufacturerMitsubishi	Manufacturer Part NumberGT1675-VNBD
Product typePower Supply Unit	SeriesGT16	Input voltage100 to 240 V ac
Output power39 W	Frequency rating50/60 Hz	Minimum operating temperature0 °C
Maximum operating temperature+50 °C

Specifications


Display unit	type	8.4", TFT, 65536 colours	10.4", TFT, 65536 colours	12.1", TFT, 65536 colours	15", TFT, 65536 colours
Display unit	resolution (pixel)	STB _: 800x600 VTB_: 640x480		800x 600	1024x 768
Power supply	A types	100–240 V AC
Power supply	D types	24 V DC
Memory capacity		15 MB			15 MB (expandable up to 57 MB)
Memory card		1 (CompactFlash)
Keyboard type		Touch-panel
Function keys		Touch keys
LED indicators		1 (POWER)
Interfaces		Ethernet (TCP/IP), RS232, RS422/485, USB, CF Slot
Multimedia capability		Optional
Real-time clock		Integrated
Network communication possibilities		Ethernet (TCP/IP), CC-Link (IE), Modbus®, RS232, RS422/485, A bus, Q bus, MELSECNET/10/H
Extension interface (communication/option unit)		1 port (max.5 units/4 channels)
IP rating ( front )		IP67 ¹

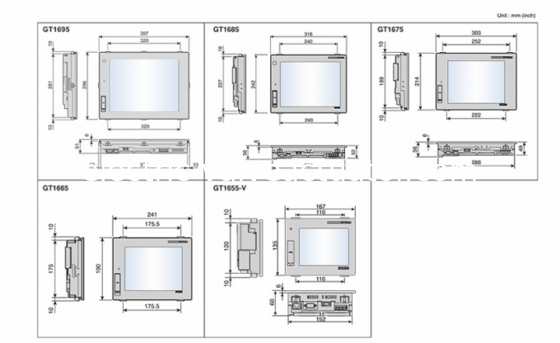

Dimensions (WxHxD) mm		241x190x52	303x214x49	316x242x52	397x296x61
Weight kg		1.7	2.1	2.7	5.0
Order information Art. no.		221949 221950 221951 221952	221945 221946 221947 221948	221360 221361	221358 221359

Accessories		Programming software, cables and interface adapters.
