| ブランド名: | Schneider |
| モデル番号: | 140EIA92100 |
| MOQ: | 1 |
| 価格: | Negotiations |

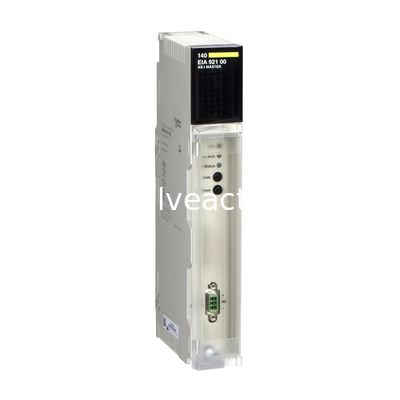

Main range of product: Modicon Quantum automation platform
| Product or component type | AS-Interface master module |
| Complementary range compatibility | AS-Interface cabling system |
| AS-i version | V1 |
| Actuator sensor interface profile [AS-i] | M2 |
| Addressing | Standard |
| Maximum cycle time | 5 ms |
| Bus length | 0.00…328.08 ft (0…100 m) without repeater |
| Discrete input number | 124 |
| Discrete output number | 124 |
| Number of slave | 31 |
| Number of module per PLC | 2 per Quantum PLC distributed drop 4 per Quantum PLC local drop 4 per Quantum PLC remote drop |
| Supply | Via AS-Interface line |
| [Us] rated supply voltage | 30 V DC |
| AS-i cabling system cycle time | 156 x (n + 1) µs 31 156 x (n + 2) µs |
| Transmission rate | 167 kbit/s |
| Reverse polarity protection | Internal |
| Local signalling | Slave addresses and state of slave I/O bits 32 LEDs |
| Electrical connection | 1 male connector SUB-D 3 pins AS-Interface link |
| Current consumption | <= 100 mA |
| Typical current consumption | 60 mA 30 V DC |
| Marking | CE |
| Net weight | 0.99 lb(US) (0.45 kg) |
| Environment IP degree of protection | IP20 |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Product certifications | FM CSA GOST C-Tick UL |
| Category | 18155-QUANTUM I/O & POWER SUPPLIES |
| Discount Schedule | PC21 |
| GTIN | 00785901785286 |
| Package weight(Lbs) | 1.04 lb(US) (0.472 kg) |
| Returnability | No |
| Country of origin | FR |
Sustainable offer status: Green Premium product
EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Environmental Disclosure:
Product Environmental Profile
Circularity Profile:
End of Life Information
| Analog I/O modules | Discrete I/O modules |
|---|---|
| 140ACI03000 | 140DDI15310 |
| 140ACI04000 | 140DDI35300 |
| 140ACO02000 | 140DDI35310 |
| 140ACO13000 | 140DDI36400 |
| 140AII33000 | 140DDI67300 |
| 140AII33010 | 140DDI84100 |
| 140AIO33000 | 140DDI85300 |
| 140AMM09000 | 140DAI34000 |
| 140ARI03010 | 140DAI35300 |
| 140ATI03000 | 140DAI45300 |
| 140AVI03000 | 140DAI54000 |
| 140AVO02000 | 140DAI54300 |
