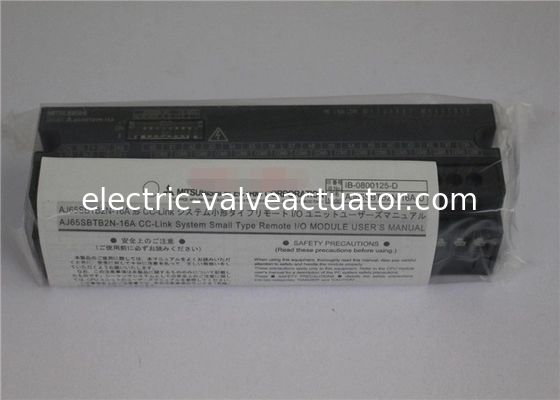

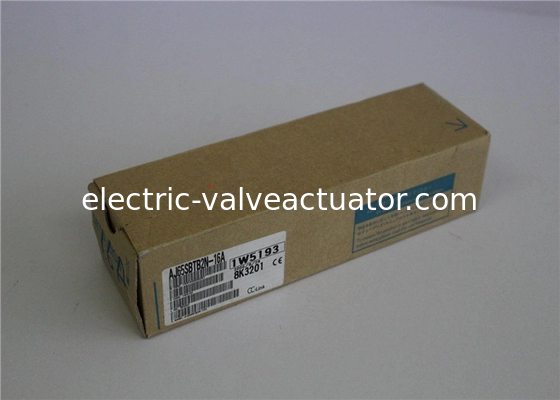

| ブランド名: | MITSUBISHI |
| モデル番号: | AJ65SBTB2N-16A |
| MOQ: | 1 |
| 価格: | Negotiations |
| Parameter | Specification | Notes |
|---|---|---|
| Model Name | AJ65SBTB2N-16A | 16-point DC input module for CC-Link |
| Product Series | MELSEC AnS Series | |
| Number of Points | 16 points | All points are common (single common terminal) |
| Input Type | Sink / Source | Selectable via common terminal wiring |
| Rated Input Voltage | 24 V DC | -15% to +20% |
| Rated Input Current | Approx. 4.3 mA per point (at 24V DC) | |
| ON Voltage / ON Current | 19 V DC or higher / 3 mA or more | |
| OFF Voltage / OFF Current | 10 V DC or lower / 1.5 mA or less | |
| Response Time | ON -> OFF: 1 ms max. OFF -> ON: 1 ms max. |
|
| Isolation Method | Photocoupler Isolation | Between inputs and communication circuit |
| Connection Method | Removable terminal block | |
| Current Consumption (5V DC) | 0.12 A (from base unit or power supply) | |
| Weight | Approx. 0.2 kg |
| Input Specification | Details |
|---|---|
| Input Type | AC input |
| Number of Points | 16 points |
| Rated Input Voltage/Frequency | AC100～120V(+10/-15％),50/60Hz(±3Hz) |
| Input Voltage Distortion Rate | 5％ or less |
| Rated Input Current | Approx. 7mA(AC100V,60Hz) |
| Maximum Simultaneous Input Points | 100％(AC110V), 60％(AC132V) |
| Inrush Current | Max 200mA within 1ms(AC132V) |
| ON Voltage/ON Current | AC80V or higher/5mA or higher |
| OFF Voltage/OFF Current | AC30V or lower/1.7mA or lower |
| Input Impedance | Approx. 15kΩ(60Hz), approx. 18kΩ(50Hz) |
| Input Response Time (OFF->ON) | 20ms or less(AC100V 60Hz) |
| Input Response Time (ON->OFF) | 20ms or less(AC100V 60Hz) |
| Input Common Method | 16 points 1 common (terminal block type 2-wire) |
| Input Isolation Method | Photocoupler isolation |
| Parameter | Specification |
|---|---|
| Operating Ambient Temperature | 0～55℃ |
| Storage Ambient Temperature | -20～75℃ |
| Operating Ambient Humidity | 10～90％RH, no condensation |
| Storage Ambient Humidity | 10～90％RH, no condensation |
| Vibration Resistance | Compliant with JIS B 3502, IEC 61131-2 |
| Shock Resistance | Compliant with JIS B 3502, IEC 61131-2 (147m/s2, XYZ 3 directions each 3 times) |
| Operating Atmosphere | No corrosive gases |
| Operating Altitude | 0～2000m |
| Installation Location | Inside control panel |
| Overvoltage Category | II or less |
| Pollution Degree | 2 or less |
