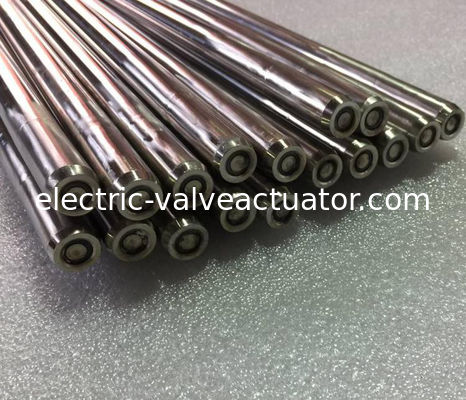

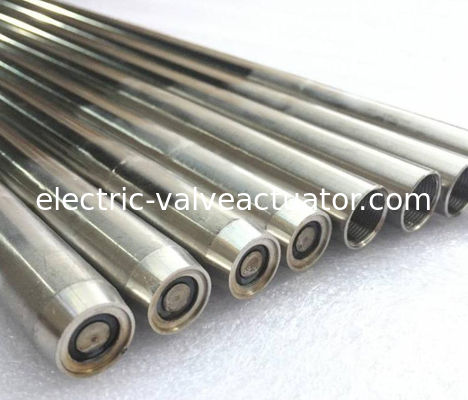

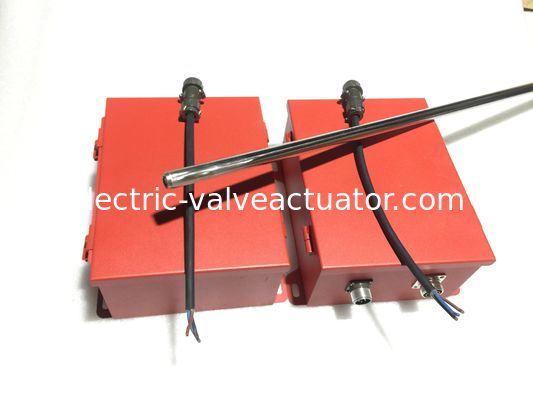

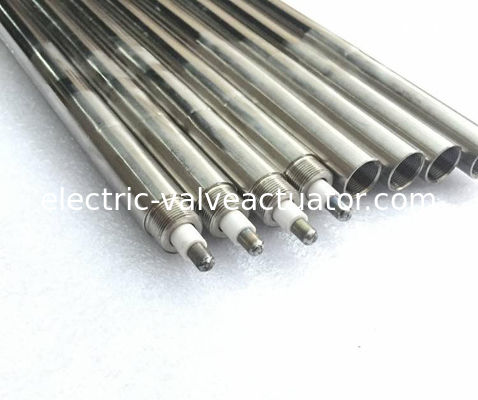

Boiler ignition system Φ18 Ignition Gun Spark Gap Rigid Rod Spark Rod spark gap

ブランド名:	OEM
モデル番号:	XDZ-1
MOQ:	1セット
支払条件:	T/T
供給能力:	200

詳細情報

製品説明

詳細情報

起源の場所:

中国

電圧:

2500V

エネルギー:

20J

スパーク周波数:

12〜14回/S

フレームサイズ:

300*200*120

糸:

M18*1.0 M18*1.5 M27*15

温度:

1300℃

ロッドディア:

Φ12、Φ16、Φ18

パッケージの詳細:

木製の箱の梱包

供給の能力:

200

ハイライト:

boiler ignition system Φ18 spark gap

ignition gun rigid rod spark

high performance ignition system spark rod

製品説明

Boiler Ignition System Φ18 Ignition Gun

This high-energy ignition system features a spark gap rigid rod spark rod designed for reliable boiler ignition applications.

Applications

Boiler ignition system

Product Overview

This ignition system utilizes DC voltage input from ignition cables to discharge high-energy electric sparks at the forming head, providing reliable ignition for industrial boiler systems.

Technical Advantages

Low ignition voltage
Excellent temperature resistance
Safety and reliability with strong pollution resistance

Product Series

Model	Description
XDH-1G	High pressure gap ignitor
XDH-2Z	DC charging portable ignition
XDH-6B	Explosion-proof high-energy ignition
XDH-6L	Portable high-energy ignition
XDH-12T	Portable high-energy ignition
XDH-20B	Explosion-proof high-energy ignition
XDH-20C	High-energy ignition
XDH-20L	High-energy ignition
XDH-50	High-energy ignition

Custom designs available to meet specific user requirements beyond standard product series.

Performance Parameters

Parameter	Unit	6 Series	XDH-20 Series	XDH-50
Energy Storage	J	2	10 \| 20	50
Working Voltage	V	DC12	AC220	AC220
Output Voltage	VDC	2500±5%
Spark Frequency	Times/sec	1-3	2-10 Adjustable	2-10 Adjustable
Duty Cycle (On/Off)	S	30/60	120/60	120/60
