Fluke 718 Series Pressure Calibrator | Industrial Pressure Calibration Instrument

詳細情報

起源の場所:

OEM

測定範囲:

0 maから24 ma

解決:

0.001 MA

正確さ:

0.015%+1カウント

最大電圧:

30 ボルト (非動作時)

温度:

-40 °Cから60 °C

動作温度:

-10 °Cから55 °C

パッケージの詳細:

新品オリジナルボックス

製品説明

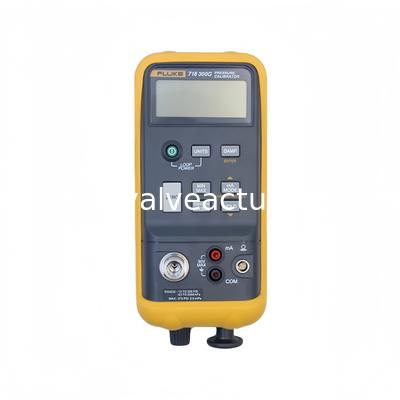

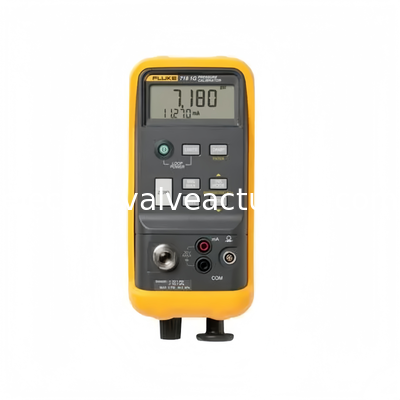

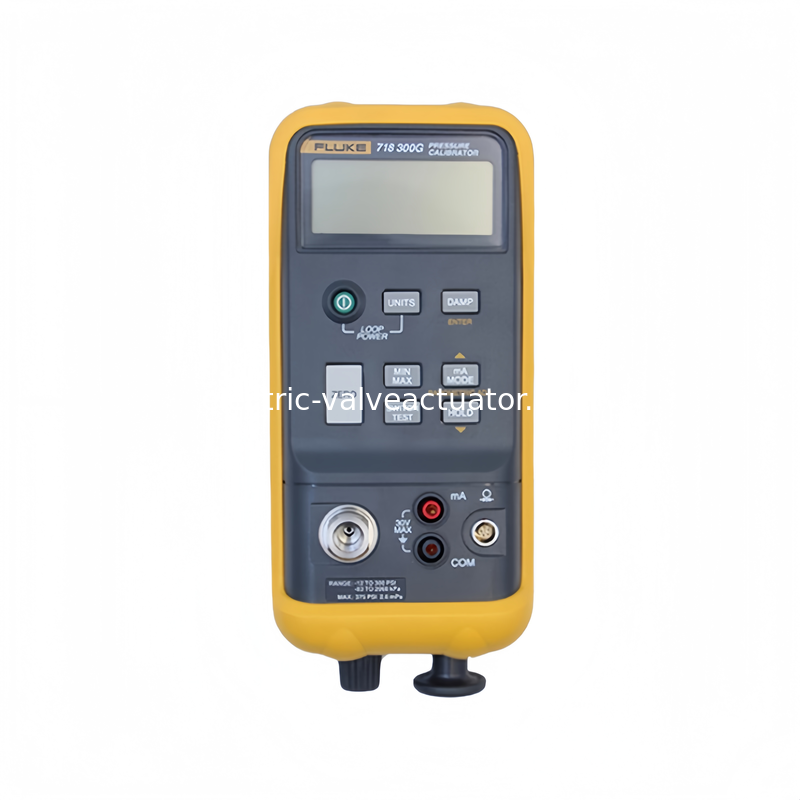

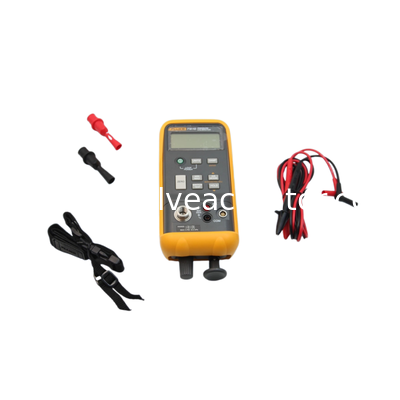

Fluke 718 Series Pressure Calibrator

Industrial pressure calibration instrument designed for precision measurement and calibration applications.

Key Technical Specifications

Model	Range	Resolution	Overpressure
Fluke 718 1G	-1 psi to 1 psi -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa)	0.001 psi, 0.001 mbar	5X Full Scale
Fluke 718 30G	-12 psi to 30 psi -850 mbar to 2 bar (-83 to 206.84 kPa)	0.001 psi, 0.1 mbar	2X Full Scale
Fluke 718 100G	-12 psi to 100 psi -850 mbar to 6.895 bar (-83 to 689.48 kPa)	0.01 psi, 1 mbar	2X Full Scale
Fluke 718 300G	-12 psi to 300 psi -850 mbar to 20.68 bar (-83 to 2068.42 kPa)	0.01 psi, 1 mbar	375 psi, 25 bar

Pressure Module Compatibility

Fluke 718 Series with 75OP Series Pressure Modules:

Additional Features

Built-in Air Pump: Functions include 0, minimum, maximum, hold reading, damping
Supported Pressure Units: psi, in H₂O (4°C), in H₂O (20°C), cm H₂O (4°C), cm H₂O (20°C), bar, mbar, kPa, inHg, mmHg, kg/cm²
Loop Power Supply: 24Vdc range with ±10% accuracy
Current Measurement: 0 to 24mA range with 0.001mA resolution and 0.015% +1 digit accuracy

Medium compatibility depends on pressure module specifications. Overpressure protection varies by model and configuration.
