| ブランド名: | Fluke |
| モデル番号: | Ti400+ |
| MOQ: | 1 |
| 価格: | Negotistical |

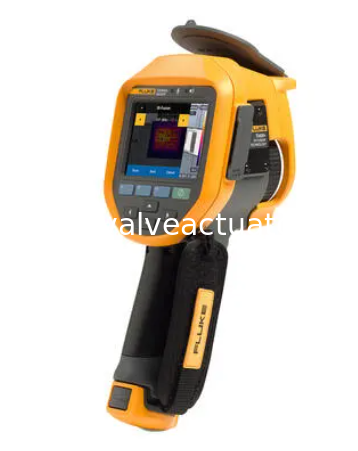

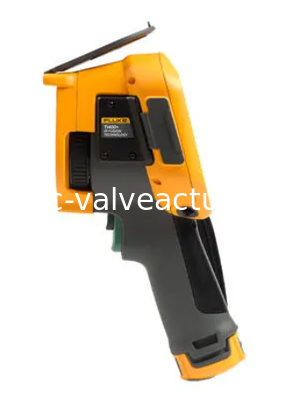

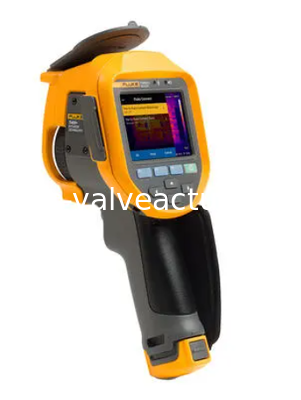

The Fluke Ti400+ is a professional-grade thermal inspection camera designed specifically for industrial preventive maintenance applications, offering advanced imaging capabilities and robust construction.
| Measurement Range | -20°C to 650°C (-4°F to 1202°F) |
| Accuracy | ±2°C or 2% (whichever is larger at 25°C) |
| Thermal Sensitivity (NETD) | ≤0.075°C at 30°C target temperature |
| Emissivity Correction | Yes (numerical and tabular) |
| Standard Lens | IFOV: 1.85 mRad, FOV: 34°H x 24°V, Min Focus: 15 cm |
| 2x Telephoto Smart Lens | IFOV: 0.65 mRad, FOV: 12°H x 9°V, Min Focus: 45 cm |
| 4x Telephoto Smart Lens | IFOV: 0.33 mRad, FOV: 6°H x 4.5°V, Min Focus: 45 cm |
| Wide-Angle Smart Lens | IFOV: 2.62 mRad, FOV: 46°H x 34°V, Min Focus: 15 cm |
| Battery | Two field-replaceable lithium-ion packs |
| Battery Life | 2-3 hours per battery (varies with usage) |
| Charging Time | 2.5 hours to full charge |
| AC Operation | 100-240 VAC, 50/60 Hz via included power supply |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Storage Temperature | -20°C to +50°C (-4°F to 122°F) |
| Environmental Rating | IP54 (dust protected, splash proof) |
| Drop Resistance | 2 meters (with standard lens) |
| Dimensions | 27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in) |
| Weight | 1.04 kg (2.3 lb) including battery |
| Warranty | Two years standard (extended available) |
| Calibration Cycle | Recommended every two years |
