回転速度センサー
Created with Pixso.

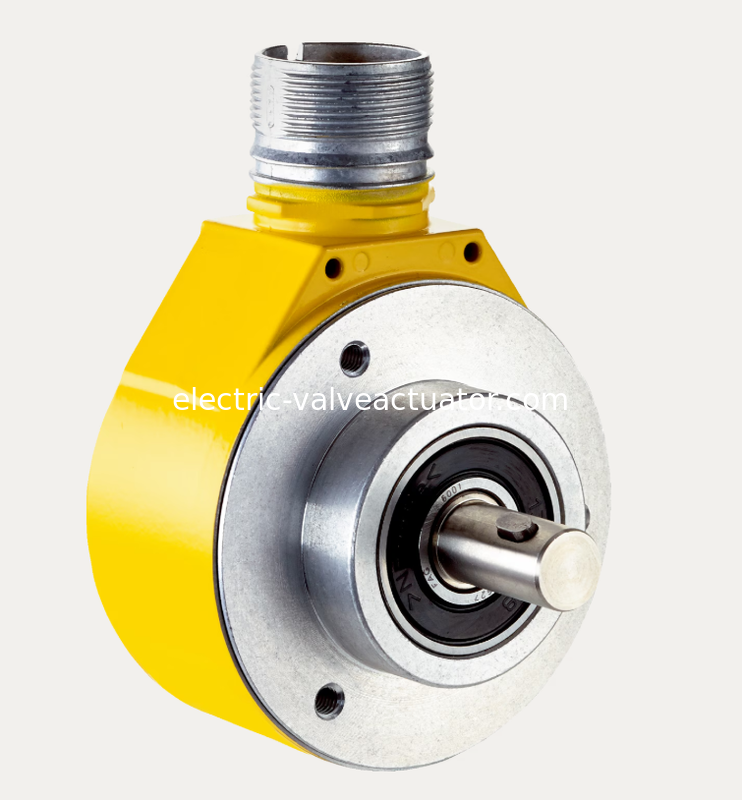

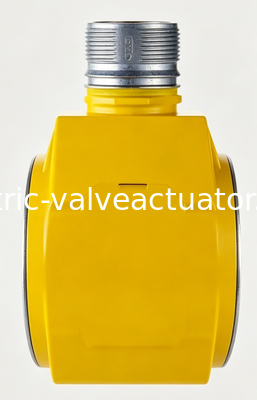

SICK AFM60S-SEKA004096 Safe Motion Rotary Encoder for Industrial Machine Control

SICK AFM60S-SEKA004096 Safe Motion Rotary Encoder for Industrial Machine Control

ブランド名: SICK
モデル番号: AFM60S-SEKA004096
MOQ: 1
価格: 交渉可能
詳細情報
起源の場所:
OEM
ラップあたりのステップ数 (最大解像度):
4,096 (12ビット)
ターン数:
4096 (12ビット)
最大解像度 (1 ターンあたりのステップ x ターン):
12ビット×12ビット(4,096×4,096)
誤差限界G:
0.05°1)
反復標準偏差 σ r:
0.002° 2)
通信インターフェース:
SSI
通信インターフェースの詳細:
SSI + Sin/Cos
初期化時間:
2秒1)
位置データ生成時間:
<1μs
1サイクルあたりのサイン/コサイン周期:
1024
出力周波数:
≤ 153.6kHz
負荷抵抗:
≧120Ω
電源電圧:
4.5...32V
力の無駄:
0.7W(無負荷)
作業速度:
≤ 9000 分 ⁻¹
慣性モーメント:
8 gcm 2
パッケージの詳細:
新品オリジナルボックス
製品説明
SICK AFM60S-SEKA004096 Safe Motion Rotary Encoder for Industrial Machine Control
Product Overview

The SICK AFM60S-SEKA004096 Safe Motion Rotary Encoder is a premium industrial-grade solution designed to integrate seamlessly into complex machine control systems where functional safety is a non-negotiable priority.

Safety & Performance Features
  • Built to the highest global safety standards for functional safety applications
  • Enables safe motion functions including speed monitoring, direction detection, and limited travel
  • Maintains system safety state even during fault conditions
  • Provides highly reliable position and movement feedback for precision automation
  • Supports "safe motion" strategies for reduced-speed operation during setup and maintenance
Durability & Construction

Engineered with solid mechanical construction for industrial resilience, featuring a sturdy clamping flange and durable shaft design that withstands significant mechanical stress, vibrations, and continuous industrial use.

Housed in a tough, sealed enclosure providing protection against dust, moisture, and environmental contaminants commonly found in harsh factory settings.

Integration & Applications

Communicates effectively with higher-level safety controllers and supports intelligent diagnostic capabilities to identify potential issues before they lead to downtime.

Ideal for applications ranging from stationary manufacturing lines to dynamic mobile machinery, this encoder provides the confidence and reliability needed to meet stringent regulatory requirements while driving forward smart, safe industrial automation.
