| ブランド名: | Hirschmann |

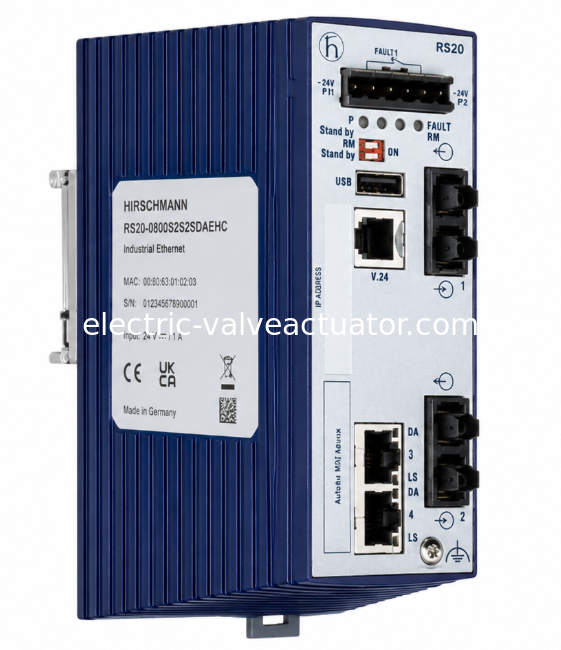

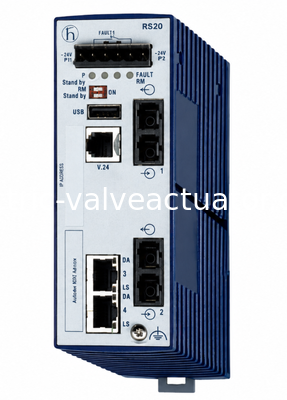

| モデル番号: | RS20-0800S2S2SDAEHC |
| MOQ: | 1 |
| 価格: | 交渉可能 |
| Port Configuration | 2* 10/100 BASE-TX RJ45 copper ports + 2* 100 BASE-FX multimode fiber ports |
|---|---|
| Fiber Specifications | SC duplex, 50/125 µm or 62.5/125 µm, typical reach up to 2-5 km |
| Network Topologies | Supports ring, redundant coupling, and dual-homing architectures |
| Redundancy Protocols | HIPER-Ring (sub-200 ms failover), MRP (IEC 62439-2), RSTP (IEEE 802.1D/w) |
|---|---|
| Power Supply | Redundant 24 V DC inputs (9.6-60 V DC) with dry-contact alarm relay |
| Reliability | MTBF exceeding 62 years (MIL-HDBK-217F prediction) |
| Operating Temperature | 0 °C to +60 °C |
|---|---|
| Vibration Resistance | IEC 60068-2-6 (up to 1 g) |
| Shock Resistance | IEC 60068-2-27 (15 g) |
| Ingress Protection | IP20 |
| Mounting | DIN-rail mount enclosure |
